The Rolling Shutter Strip Machine is fitted with a number of rolls with forming dies on it, through which a cut strip is passed and in one operation the strip is formed into a desired shape, suitable for making rolling shutters in one insertion. These machines make every strip accurately and equally.

  • Machines are designed with smooth curves to the metal sheets.
  • Machines can work for long hours consistently.
  • We are making matching are custom made as per customer specifications and at economical rates.

Salient features:

  • Various sizes
  • Customized designs
  • Very low maintenance
  • Great strength
  • Consistent performance
  • Durable
  • Competitive prices

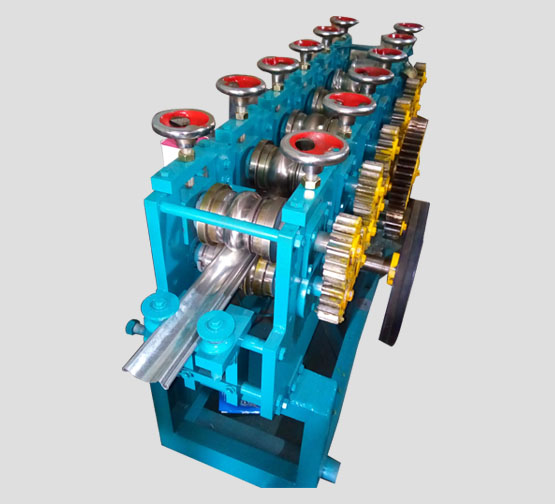

Rolling Shutter Strip Machine

Specification:

Type
Tile Forming Machine
Raw Material
Galvanized Sheet
Machine Type
Semi Automatic / Fully Automatic
Transmission
Gear Box
Job Thickness
0.5 to 1 mm
Capacity
Heavy Duty
Production Capacity
up to 40 ft/min
Power - Phase
3 Phase
Power - Voltage
440 V
Power - Frequency
50/60 Hz
Motor Power
5 HP
Strip Size
114 to 168 mm
Strip Designed
As per requirement
Stations (Number of Rolls)
6 par
Machine Speed
40 Feet/Minute|12 Meters/Minute
Net / Gross Weight
A900 to 1200 kg
Dimensions
2.0 x 1.4 x 1.1 meter
Delivery Time
30 to 45 Days
Surface Treatment
Color Coated
Minimum Order Quantity
1 Unit
Optional Accessories
Coil Stand
Hydraulic Cutting Power
1.4KW/ 3HP
Price Semi Automatic
4,00,000
Price Fully Automatic
6,00,000
